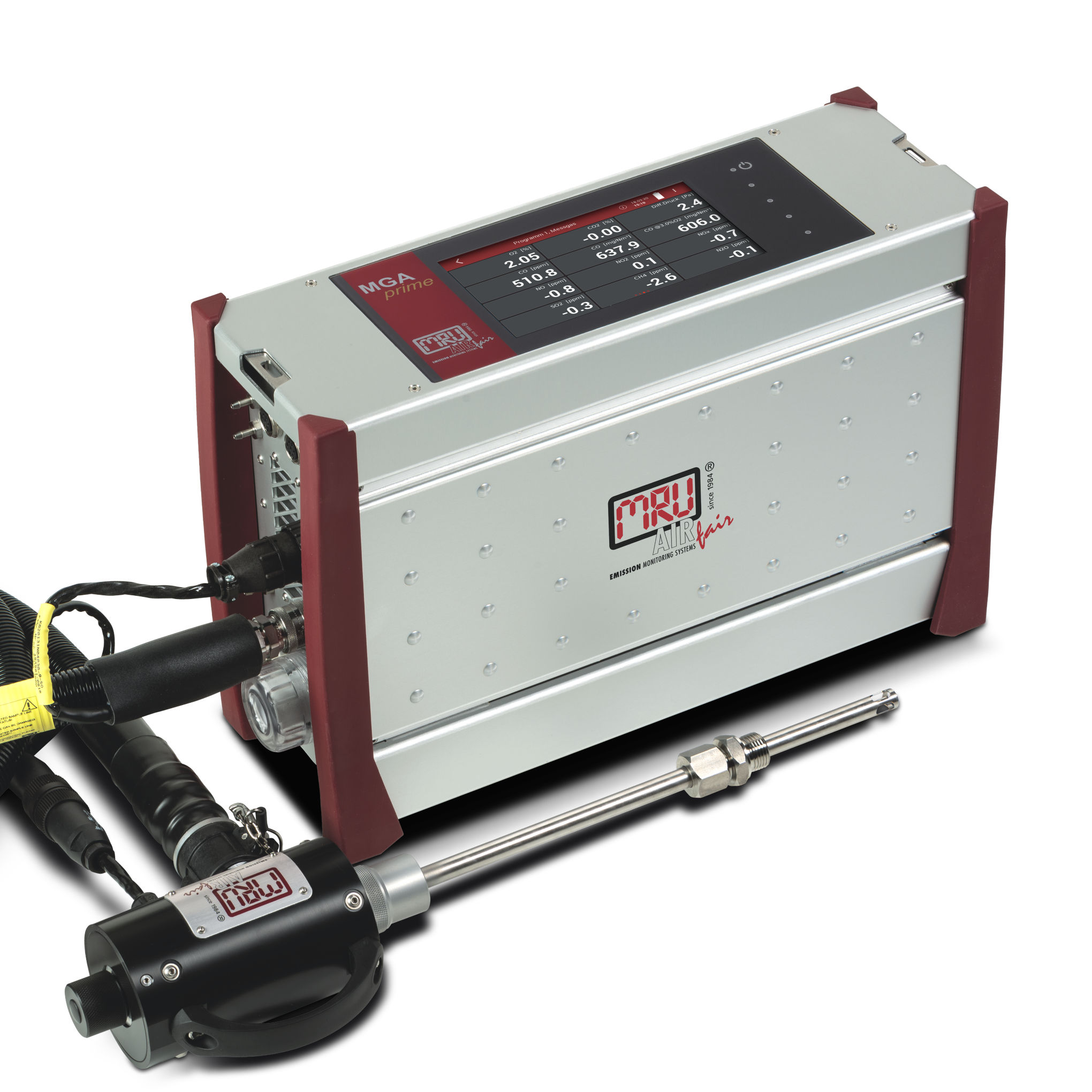

MRU MGAprime H2 Taşınabilir Gaz Analizörü

Ürün Bilgisi Teknik Özellikler Algılanan Gazlar Teslimat İçeriği Ürün PDF Aksesuarlar

Integrated, efficient dual heat exchanger gas cooler (Peltier type) with dual automatic condensate draining pumps
Using single beam through sample cell for NDIR measurements
Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
Internal sample flow monitoring with display and alarm
Zero gas (ambient air) air inlet nozzle and passive VENT outlet of sample gas (for use inside laboratories)
O2 referencing (normalisation) to user settable value
Large fuel type list incl. self choose fuels with user definable parameters
Complete combustion calculation using country specific fuel type list
Automatic internal test and control of soft- and hardware functions
Automatic measurement incl. data logging function
7” high-resolution (800x480 pixel) TFT colour display with swipe and touch technique, with LINUX operating system
Results stored in database - possibility to view entire measurement session in graphical form, create measurement reports, export data to CSV files, and more
PC communication via LAN - Ethernet
Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
Analog outputs (8-channels), analog inputs (4-channels)
Modern and robust design, Aluminium enclosure with rubber molded impact protection for use in harsh industrial environment

Dimensions and other data
Operating system	LINUX
Display	7“ TFT (800 x 480 px) colour display, backlit, with touch pad
Data storage	internal 10.000 data sets, external USB stick
Interfaces	Ethernet, Bluetooth, WLAN, RS485
Printer	external thermal printer only
Battery capacity	Li-Ion , 96 W, for approx. 1 hour „stand-by“
Operating temperature	+5 ... +50 °C ; RH up to 95 % non condensing
Storage temperature	-20 ... +50 °C
Power supply	86 ... 265 Vac / 47 ... 63 Hz / 105 W (analyser only)
Protection	IP20 (or IP42 inside transport case)
Dimensions	430 x 290 x 150 mm (w x H x D)
Weight	approx. 7,5 kg for minimal configuration

Accessories

Combustion air temperature probe, 300 mm

w/ PTFE cone and 2,7m cable

Pitot tube, L-type, with temperature measurement

100 x Ø 3mm

Darcy tubes, Type S

for flow velocity measurement, incl. temperature measurement, 300, 1.000 or 1.500mm length

WLAN/USB printer

with LiIon battery, 80mm paper width and battery charger

"Pelicase" style transport case

suitable for flight transportation

Glass wool filter material

1 carton=50x30g for 750 filtering processes

Particulate filter element

for low dust filter cartridge (pack of 10pcs)

Printer paper 80mm width

thermo paper, pack of 5 rolls

IP42 soft padded nylon bag

for applications in rainy conditions

Adapter non-MRU heated sampling line

to connect 6mm steel tube of non-MRU heated sampling line to analysers gas inlet port

Heat deflector shield

Ø 150mm for Ø 10mm tubes

Probe tube holder 1/2"-12mm

for firm and tight probe tube fixation on the gas pipe

Exchangeable probe tube, Type TR

from 300 ... 1.500 mm, stainless or inconel steel

Industrial probe head, HPI, heated

with integrated heater, 160°C temperature regulated by analyser

Heated gas sampling line, various lengths

for probe HPI, with temperature control and regulation by analyser, quick coupling to probe head

Measuring range
H2	0...1.000ppm, Überlast bis 2.000ppm 0...10.000ppm, overload 20.000ppm
O2	(paramagnetic) 0 ... 25,00 %
CO2	(NDIR) 0 ... 40 %
CO	(NDIR) 0...175 / 10.000 ppm
HC (CH4)	(NDIR) 0 ... 500 / 10.000 ppm
HC (C3H8)	(NDIR) 0 ... 200 / 5.000 ppm
NO	(NDIR) 0 ... 200 / 4.000 ppm
NO2	(NDIR) 0 ... 150* / 1.000 ppm *only possible with optional acid dosage box
SO2	(NDIR) 0 ... 150* / 4.000 ppm *only possible with optional acid dosage box
N2O	(NDIR) 0 ... 100 / 500 ppm
Fluegas temperature	0°C ... 1.200°C
Combustion air temperature	0°C ... 500°C
Ambient air temperature	0°C ... 100 °C
Differential pressure	-120 ... +120 hPa
Flow Velocity	3 ... 100 m/s
Options
Glas flow velocity and mass calculation by using a Pitot tube
H2S-measurement 0...500, overload up to 2.000 ppm
Range extension CO (NDIR) to 100.000 ppm
